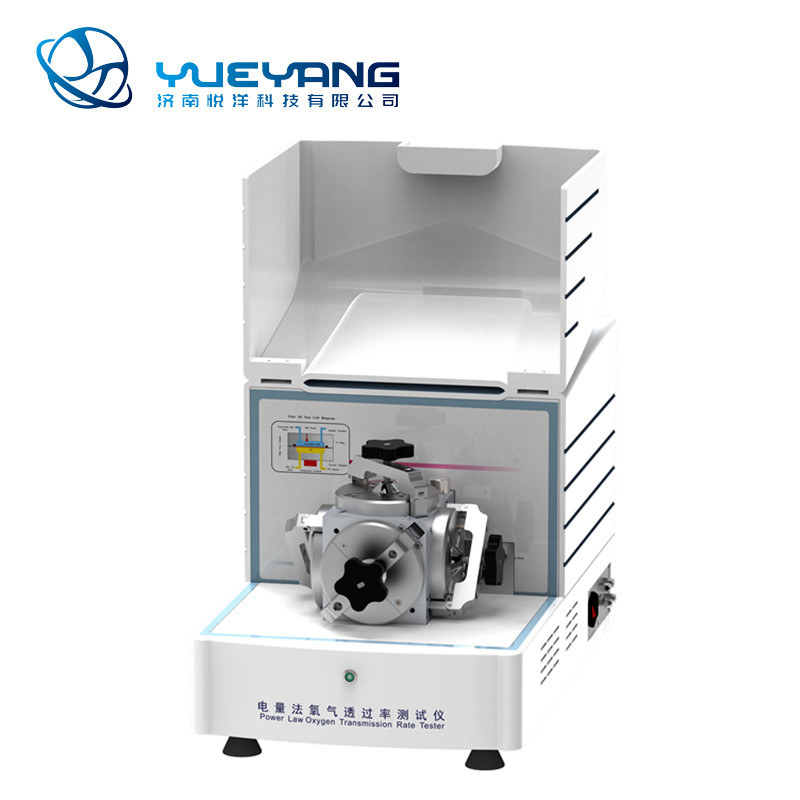

YY310- Oxygen Permeation Tester ASTM D3985-(Coulemeter Sensor method)
Kev txiav txim siab oxygen permeability yam ntxwv ntawm cov khoom thiab ntim.
Haum rau: Zaj duab xis, ntawv, thawv thiab cov khoom siv ntawm cov yas, textile, tawv thiab hlau.

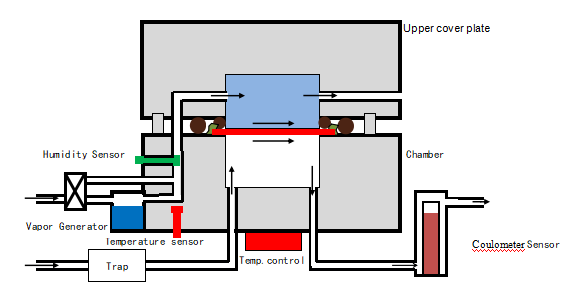

Coulemeter Sensor txoj kev
Qhuav oxygen (los yog nrog ib qho av noo) ntws ntawm ib sab ntawm cov qauv, thiab high-purity nitrogen (carrier gas) ntws ntawm tus nqi ntws ruaj khov ntawm lwm sab;Qhov sib txawv ntawm cov pa oxygen sib txawv ntawm ob sab ntawm cov qauv ua rau cov pa nkag mus los ntawm cov pa oxygen ntawm cov qauv mus rau sab nitrogen;Lub permeated oxygen yog nqa mus rau lub coulometer sensor los ntawm nitrogen (carrier gas);Lub sensor ntsuas cov pa oxygen ntawm cov pa roj carbon monoxide thiab suav cov pa permeability ntawm cov qauv.
![(~O5}]4MURXHS)XRLQ95R2M](https://www.jnyytech.com/uploads/O54MURXHSXRLQ95R2M.png)
YBB 00082003, GB / T 19789, ASTM D3985, ASTM F2622, ASTM F1307, ASTM F1927, ISO 15105-2, JIS K7126-B
Original imported oxygen sensor, ppb raug.
Kev tswj cov av noo: 35% ~ 95% RH, 100% RH, tag nrho tsis siv neeg, fogless.
Kub tswj feature: Semiconductor txias thiab kub bidirectional tswj, siab precision, ruaj khov thiab txhim khu kev qha.
Muaj zog ib puag ncig adaptability: Sab hauv ib puag ncig, kub 10 ℃ - 30 ℃, txhua qhov av noo, tsis tshua muaj nqi siv.
Specimen sab leakage pov thawj sealing installation tshuab.
Kev txawj ntse thiab tsis siv neeg: lub hwj chim-ntawm tus kheej-kev sim kom tsis txhob sim nyob rau hauv lub xeev txhaum;ib qho tseem ceeb pib, tag nrho tsis siv neeg sim ua tiav.
Software: graphical, tag nrho cov txheej txheem thiab txhua lub caij saib xyuas;ntau hom ntawv qhia.
Optional: software module ntawm GMP computerization system.
| Lub npe | Parameter | Lub npe | Parameter | |
| Humidity Range | 0% RH, 35% ~ 95% RH, 100% RH | Humidity yuam kev | ± 1% RH | |
| Qhov kub thiab txias | 15 ℃ ~ 50 ℃ | Kub yuam kev | ± 0.1 ℃ | |
| Qauv Thickness | <3 hli | Gas siab | ≥0.2 MPa | |
| Carrier gas | 99.999% purity nitrogen | Carrier gas ntws | 0 ~ 100 cm3 / min | |
| Interface loj | 1/8-inch hlwb yeeb nkab | Qhov Loj (L × B × H) mm | 720 (L) × 415 (W) × 400 hli (H) | |
| Fais fab mov | AC 220V 50Hz | Kev siv fais fab | 1200 W | |
| Qauv tshwj xeeb | Qauv | |||
|
| YY310--11-A | YY310---31-M | YY310---41-E | |
| Tus naj npawb | 1 | 3 | 4 | |
| Test Area (cm2) | 50 | 7 | 50 | |
| Zaj duab xis ntsuas Range (cm3 / m2.24h) | 0.01-14.000 Nws | 0.05-70.000 Nws | 0.01-14.000 Nws | |
| Film Measure yuam kev (cm3 / m2.24h) | 0.01 ib | 0.05 Nws | 0.01 ib | |
| Package Measure Range (cm3/pkg.24h) | 0.00005-70 | / | 0.00005-70 | |
| Pob ntsuas yuam kev (cm3 / m2.24h) | 0.00005 | / | 0.00005 | |
| Net Nyhav (kg) | 52 | 73 | 82 | |
Configuration:Lub cav tseem ceeb, kuaj lub computer, kev sim software, Agilent oxygen trap, specimen sampler, 2 siab txo li qub, sealing roj.
Yeem:software module ntawm GMP computerization system, thawv kuaj tivthaiv, thawv ntsuas kub tswj ntsuas tivthaiv.
Tus kheej-Kev muab khoom: High purity Oxygen, High purity nitrogen, dej distilled.

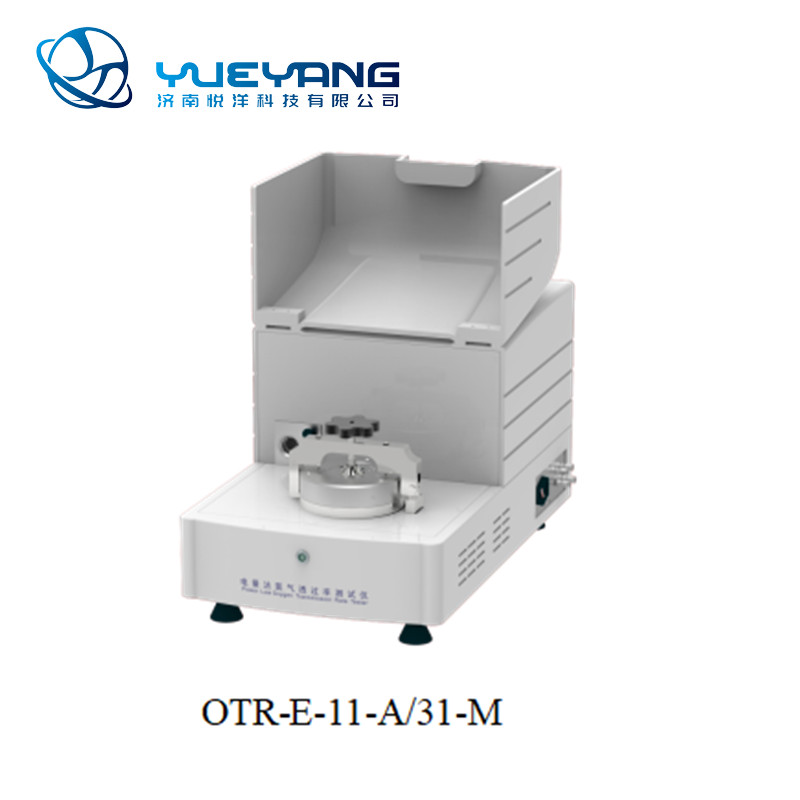

-----YY310-11-A/31-M
