YYT-07B Respirator Nplaim Retardant Tester
Cov nplaim hluav taws kub retardant tester rau lub tshuab ua pa yog tsim los ntawm gb2626 cov cuab yeej tiv thaiv ua pa, uas yog siv los ntsuas qhov hluav taws kub thiab hluav taws kub ua haujlwm ntawm lub tshuab ua pa. Cov qauv siv tau yog: gb2626 cov khoom tiv thaiv kev ua pa, gb19082 cov kev cai rau cov khaub ncaws tiv thaiv kev kho mob pov tseg, gb19083 kev cai rau kev kho mob lub qhov ncauj qhov ntswg, thiab gb32610 kev qhia tshwj xeeb rau lub ntsej muag tiv thaiv niaj hnub Yy0469 daim npog ntsej muag kho mob, yyt0969 daim npog ntsej muag kho mob, thiab lwm yam.
1. Lub npog ntsej muag lub taub hau pwm yog ua los ntawm cov khoom siv hlau, thiab lub ntsej muag lub ntsej muag yog simulated raws li qhov sib piv ntawm 1: 1
2. PLC kov npo + PLC tswj, kom ua tiav kev tswj / tshawb pom / suav / cov ntaub ntawv tso saib / cov ntaub ntawv keeb kwm query multi-function
3. Kov npo:
ib. Loj: 7 "zoo zaub loj: 15.41cm ntev thiab 8.59cm dav;
b. Kev daws teeb meem: 480 * 480
c. Kev sib txuas lus interface: RS232, 3.3V CMOS lossis TTL, serial chaw nres nkoj hom
d. Cia muaj peev xwm: 1g
e. Siv cov khoom siv ntshiab FPGA tsav zaub, "zero" lub sijhawm pib, lub zog tuaj yeem khiav
f. Siv m3 + FPGA architecture, m3 yog lub luag haujlwm rau kev qhia parsing, FPGA tsom rau TFT zaub kom paub meej ceev thiab kev ntseeg siab
4. Qhov siab ntawm qhov cub tuaj yeem hloov kho
5. Tsis siv neeg qhov chaw thiab lub sijhawm
6. Tso saib lub sijhawm tom qab hlawv
7. Nruab nrog hluav taws xob sensor
8. Lub taub hau pwm txav ceev (60 ± 5) mm / s
9. Txoj kab uas hla ntawm nplaim hluav taws kub sojntsuam yog 1.5mm
10. Nplaim kub hloov ntau yam: 750-950 ℃
11. Qhov tseeb ntawm lub sijhawm tom qab hlawv yog 0.1s
12. Fais fab mov: 220 V, 50 Hz
13. Gas: propane lossis LPG

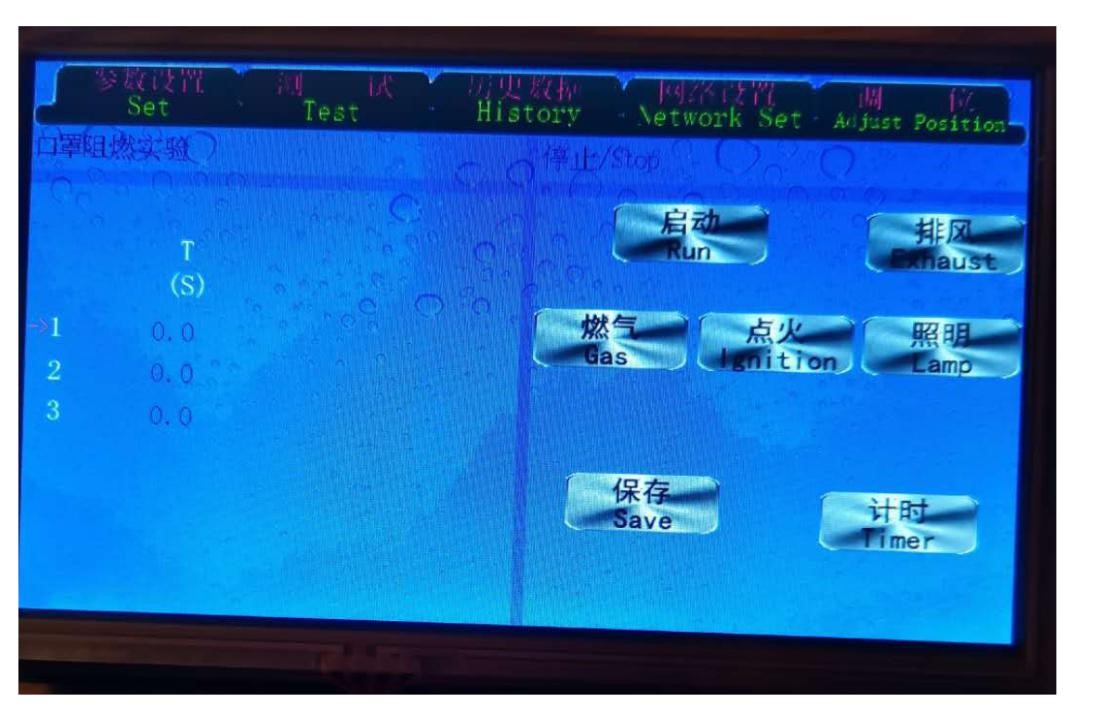

Test interface
1. Nyem ncaj qha mus rau sab saum toj ntawm lub teeb kom kho qhov kev ncua deb ntawm lub nozzle mus rau qhov tuag qis
2. Pib: lub taub hau pwm pib txav mus rau qhov kev taw qhia blowtorch thiab nres ntawm lwm txoj hauj lwm los ntawm lub tshuab blowtorch
3. Exhaust: qhib / tawm lub kiv cua ntawm lub thawv →
4. Gas: qhib / kaw gas channel
5. Ignition: pib lub siab kub ignition ntaus ntawv
6. Teeb pom kev zoo: qhib / tawm lub teeb hauv lub thawv
7. Txuag: txuag cov ntaub ntawv xeem tom qab kuaj
8. Sijhawm: sau lub sijhawm tom qab hlawv
